How to Choose a CNC Vertical Lathe for Your Parts

Choosing the wrong CNC vertical lathe can lead to workpiece interference, unstable cutting, and unnecessary costs. But how do you know which machine fits your parts?

The answer starts with your workpiece size, weight, material, and machining requirements. This guide covers the key factors to help you select the right CNC vertical lathe.

Is a CNC Vertical Lathe Right for Your Parts?

A CNC vertical lathe is best suited for round, disc-shaped, or relatively short workpieces with large diameters. Its vertical spindle design allows the workpiece to rest on a horizontal table, providing stable support and easier loading.

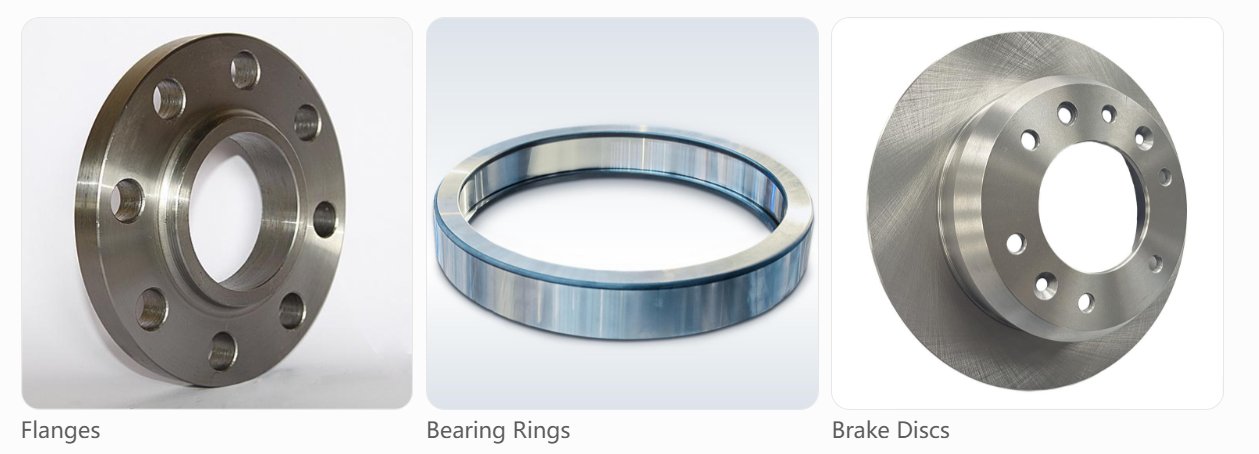

Typical applications include flanges, brake discs, bearing rings, pump housings, and valve bodies.

However, not every round part requires a vertical lathe. The right choice depends on your workpiece shape, size, weight, and machining needs.

Start With Your Workpiece Requirements

Before comparing CNC vertical lathe specifications, define your workpiece requirements. The finished part dimensions alone are not enough. You also need to consider the raw material, workholding setup, and machining operations.

Always use the largest raw workpiece dimensions and total setup weight when checking machine capacity. Leave enough clearance for clamping, tool movement, and safe machining.

Check the Key CNC Vertical Lathe Specifications

Once you know your workpiece requirements, the next step is to check whether the machine can handle them. Focus on these four specifications to avoid machining limitations and unnecessary costs.

Maximum Swing vs. Maximum Turning Diameter

These two specifications are often confused, but they serve different purposes. Check both dimensions against your raw workpiece and fixture sizes. Allow sufficient clearance for tool movement and clamping.

• Maximum Swing Diameter — The largest diameter a workpiece can rotate through without hitting the machine structure.
• Maximum Turning Diameter — The largest diameter the cutting tool can actually machine.

For example, a vertical lathe with a 700 mm swing diameter and a 500 mm turning diameter cannot necessarily machine a 600 mm outside diameter, even though the workpiece may fit inside the machine.

Table Diameter and Maximum Load

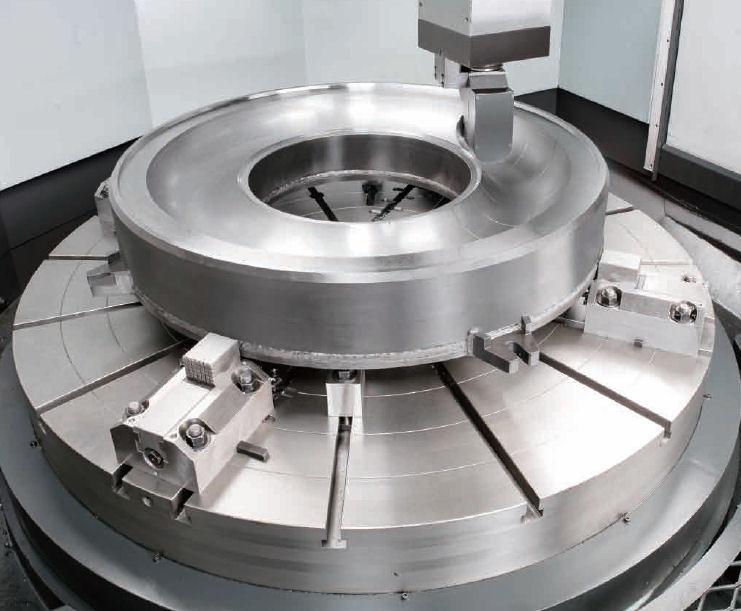

The worktable must support your workpiece securely throughout the machining process. Do not select a machine based only on its rated table load. Confirm that your actual clamping arrangement and load distribution are acceptable.

Check the following:

• Table Diameter — Ensure the table provides sufficient support and space for your workholding setup.
• Maximum Table Load — Include the total weight of the workpiece, chuck, fixtures, and other accessories.
• Load Distribution — Consider eccentric loads and uneven weight distribution, which may affect stability.

Maximum Turning Height and Axis Travel

Your workpiece must fit within the machine's available machining space, not just its stated turning height. Include fixture height, tool length, and safe retraction space when evaluating machining clearance.

• Maximum Turning Height — Determines the height of the workpiece the machine can accommodate under specified conditions.
• X-Axis Travel — Affects the tool's ability to reach the required internal and external machining positions.
• Z-Axis Travel — Determines the available vertical tool movement for cutting and tool retraction.

Spindle Speed, Torque, and Motor Power

The right spindle configuration depends on your workpiece material, diameter, and cutting requirements.

A higher maximum spindle speed does not always mean better cutting performance. For large-diameter parts or heavy cuts, available torque at the actual machining speed is often more important.

Match the Machine to Your Machining Process

Even if a CNC vertical lathe meets your workpiece size and weight requirements, it must also support your machining operations. Different cutting processes require different machine capabilities.

List all machining operations before choosing the machine configuration. If your parts require milling or off-center drilling, confirm whether these functions are available on the selected model rather than assuming every CNC vertical lathe supports them.

Heavy Roughing

Roughing removes large amounts of material and generates high cutting forces. Choose a machine with sufficient low-speed spindle torque, rigid construction, and effective chip removal.

For cast iron or steel parts with large machining allowances, prioritize cutting stability over maximum spindle speed.

Precision Finishing

Finishing requires consistent dimensional accuracy, roundness, and surface quality. Focus on spindle stability, machine rigidity, thermal stability, and repeatability.

If your parts have tight tolerances, also check the machine's accuracy specifications and available inspection results.

Multiple Machining Operations

Some workpieces require more than basic turning. Check whether the machine supports the operations you need.

How to Choose a CNC YANGSEN Vertical Lathe

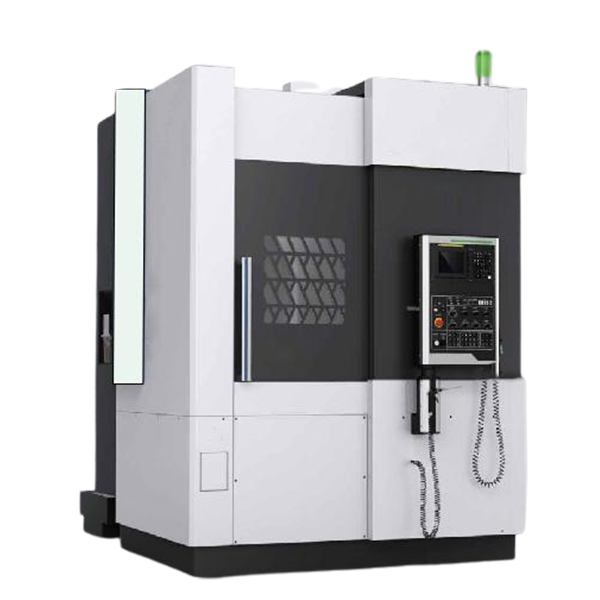

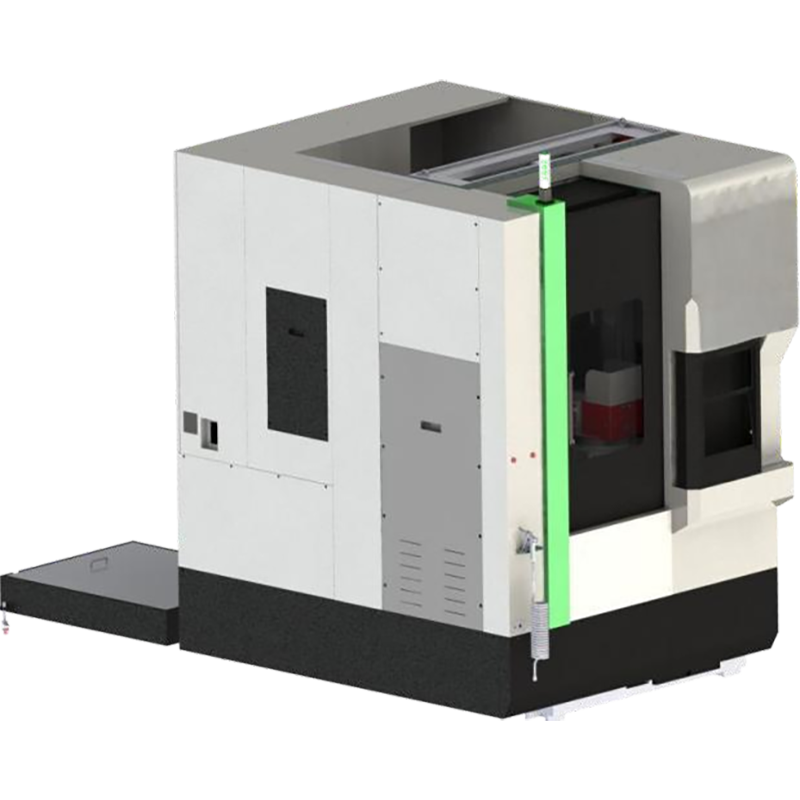

CNC YANGSEN offers CNC vertical lathes for different workpiece sizes and turning requirements. The YSLC-500 and YSLC-800 are two available options. Compare their machining capacities before selecting a model.

FAQs

1. What is the difference between swing diameter and turning diameter?

Swing diameter is the maximum diameter a workpiece can rotate without interference, while turning diameter is the maximum diameter the cutting tool can machine. Always check both specifications to ensure your workpiece fits and can be fully machined.

2. How do I determine the required table load for a vertical lathe?

Calculate the combined weight of your workpiece, chuck, fixtures, and other rotating accessories. The total must remain within the machine's rated load capacity. You should also consider weight distribution, clamping stability, and any additional restrictions specified by the manufacturer.

3. Can a CNC vertical lathe handle both roughing and finishing?

Yes. A properly configured CNC vertical lathe can perform both roughing and finishing operations. Roughing requires sufficient spindle torque and machine rigidity, while finishing depends on spindle stability, positioning accuracy, and thermal performance. Check that the selected machine meets both requirements.

4. How much clearance should I allow for workholding and tooling?

There is no single clearance value suitable for every application. You need enough space for the workpiece, fixtures, tool holders, cutting movements, and safe tool retraction. Check the complete setup against the machine's working envelope before purchasing.

5. What information should I provide when requesting a CNC vertical lathe quotation?

Provide your workpiece drawings, raw material dimensions, weight, material type, machining operations, and required tolerances. Include your expected production volume and any special tooling requirements. These details help the manufacturer recommend a suitable machine model and configuration.

Conclusion

Choosing the right CNC vertical lathe starts with understanding your workpiece. Focus on part dimensions, weight, machining operations, and accuracy requirements rather than machine size alone. The right specifications help you achieve stable machining while avoiding unnecessary costs.

Need help selecting a CNC vertical lathe? CNC YANGSEN can help you match the right machine to your parts. Contact us with your workpiece drawings and machining requirements for a tailored recommendation.
